| Battery Power Chargers |
|
| Product Code: |

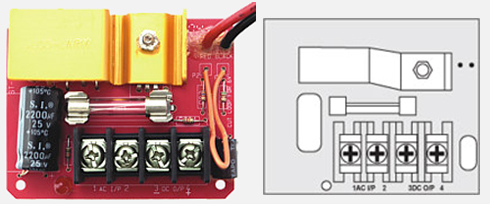

MD-BPC612 |
16.5V AC, 1.5A |
MD-E |
| |
|
| |
 |
User Manual |
| |
|
| |
| Features: |
- Convert low-voltage AC input power to low-voltage DC output power
- Automatic recharging of back-up batteries
- Several models to choose from
- Programmable DC voltage output
- Built-in battery short-circuit protection
- Fused output for a regulated charge
- Automatic switch-over to the backup battery if main power is lost or cut
- LEDs indicate power status
- Includes foam tape and battery leads for easy installation
- Regulated and filtered output voltage
|
| Model |
MD-BPC612 |
MD-BPC61224 |
| DC Voltage |
6V DC / 12V DC |
6V DC / 12V DC / 24V DC |
| Current (Continuous) |
1.5A |
7.0A |
| Current (Peak) |
2.0A |
7.5A |
| Current Output (Max Change) |
6V DC = 200mA
12V DC = 400mA |
6V DC = 180mA
12V DC = 350mA
24V DC = 700mA |
| Dimension |
2.875 x 2.25 x 1 inches
73 x 57 x 25 mm |
5.5 x 5.125 x 2.17 inches
140 x 130 x 55 mm |
*Specifications are subject to change without notice.
- One (1) MD-BPC612, Battery Power Chargers
*Manufacturer's One Year Warranty
|
