Timer Relay Module
|

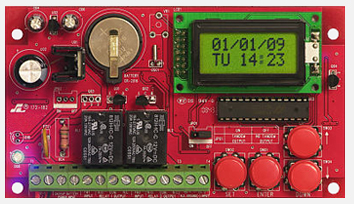

365 Days Schedule Timer
|
Product Code: MD-TR
PIC: MD-A
Features:
|
Product Code: MD-T365
PIC: MD-B
Features:
|
| • | Triggered by positive voltage (+DC), closure of dry contact, or opening of dry contact |
| • | Timer can be set from 1 second to 60 minutes |
| • | Relay can be programmed to activate at the start or at the end of the timing cycle |
| • | Relay can be programmed to pulse (flash) or be steady on |
| • | Built-in reset function to manually reset timing cycle |
| • | Form-C relay, contacts rated 8A @ 120V AC / 24V DC |
| • | LED indicates relay is energized |
| • | Current draw – Less than 1mA (standby) or 50mA (relay energized) |
| • | Functions programmed via DIP switches – no jumpers to cut |
Learn more »
|
 |
| • | Two N.O. or N.C. form “C” relays 10A@120VAC / 28VDC |
| • | Each relay can be programmed for 50 events, total of 100 individual programmable events |
| • | 100 programmable events can be set weekly, daily or hourly 365 days a year |
| • | Password protection can be turned ON or OFF |
| • | Block programming allows events to be repeated on consecutive days |
| • | Event output can be shunt or momentary, momentary output programmable for 1~99 seconds |
| • | 10 programmable holidays |
| • | EEPROM memory for data safe storage protection when power failed |
| • | Build-in clock back-up battery |
| • | Built-in backup battery charger for external back-up battery use |
| • | Can be set for standard or Daylight Savings Time |
| • | Alpha-numeric and back lit LCD display for easy programming |
Learn more »
|
 |
|
|
High Voltage Relay
|

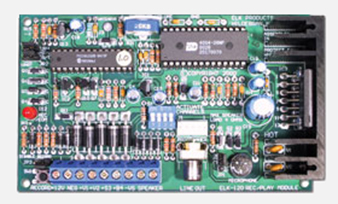

4 Channel Recordable Siren & Voice Annunciator Module
|
Product Code: MD-HVR
PIC: MD-C
Features:
|
Product Code: MD-SVOICE4
PIC: MD-D4
Features:
|
| • | Two separate sets of Form-C dry contacts |
| • | Perfect for a variety of general switching purposes |
| • | Can be connected for load switching, dry contact, latching output, reverse polarity, line seizure, and other uses |
| • | 6/12/24V DC operation, programmable by on-board jumpers. (12V DC by default) |
| • | Red LED indicates relay is energized |
| • | Large terminal blocks for easy installation |
| • | Small size, easily fits inside alarm panel enclosures or other hidden areas |
| • | Foam mounting tape included |
Learn more »
|
 |
| • | 4 channels configurable as:
2 siren and 2 recordable voice or 4 recordable voice |
| • | Siren sounds: classic yelp siren, temporal coded horn, & pulsing industrial horn |
| • | Temporal coded horn meets ANSI standard for audible emergency evacuation signaling |
| • | Maximum record time is 8 minutes divided between the number of voice channels |
| • | Recordings stored in non-volatile memory |
| • | Each channel accepts momentary triggers |
| • | "One shot" or continuous repeat voice playback settings |
| • | Built-in condenser microphone for recording |
| • | Adjustable speaker volume and current draw |
| • | Powerful 24 watt audio amplifier for speakers |
| • | Line level output for paging systems and amplifiers |
Learn more »
|
 |
|
|
8 Channel Recordable Voice Annunciator Module
|
8 Channel Passive Video Balun / Transceiver
|
Product Code: MD-VOICE8
PIC: MD-D8
Features:
|
Product Code: MD-BPC612
PIC: MD-E
Features:
|
| • | 8 channels of recordable voice, sound or music |
| • | Maximum record time is 8 minutes which may be divided between the number of channels desired |
| • | Recordings are stored in non-volatile memory |
| • | Each channel selectable for "+" or "-" triggering |
| • | Each channel will accept a momentary or continuous trigger |
| • | Continuous (repeat) playback or "one shot" settings |
| • | Built-in condenser microphone for recording |
| • | Adjustable speaker volume |
| • | Powerful 24 watt audio amplifier for speakers |
| • | Line-level output for amplifiers and paging systems |
| • | PC sound card interface connector (interface sold separately) |
| • | Mounted inside plastic enclosure |
Learn more »
|
 |
| • | Convert low-voltage AC input power to low-voltage DC output power |
| • | Automatic recharging of back-up batteries |
| • | Several models to choose from |
| • | Programmable DC voltage output |
| • | Built-in battery short-circuit protection |
| • | Fused output for a regulated charge |
| • | Automatic switch-over to the backup battery if main power is lost or cut |
| • | LEDs indicate power status |
| • | Includes foam tape and battery leads for easy installation |
| • | Regulated and filtered output voltage |
Learn more »
|
 |
|
|
Battery Power Chargers
|
|
Product Code: MD-BPC61224
PIC: MD-F
Features:
|
|
| • | Convert low-voltage AC input power to low-voltage DC output power |
| • | Automatic recharging of back-up batteries |
| • | Several models to choose from |
| • | Programmable DC voltage output |
| • | Built-in battery short-circuit protection |
| • | Fused output for a regulated charge |
| • | Automatic switch-over to the backup battery if main power is lost or cut |
| • | LEDs indicate power status |
| • | Includes foam tape and battery leads for easy installation |
| • | Regulated and filtered output voltage |
Learn more »
|
 |
|
|
