Video Intercom System

Color IR Camera Outdoor Station & 7” Color Monitor Inside Station Intercom System
Product Code: NC-DMK

Features:

•One (1) Outdoor Station:
NC-DS2 or
NC-DS2-ST or
NC-DS2-SLIM or
NC-DS2-KP
•One (1) Inside Station:
NC-MON4
•One (1) Power Supply:
AC-POWERDC

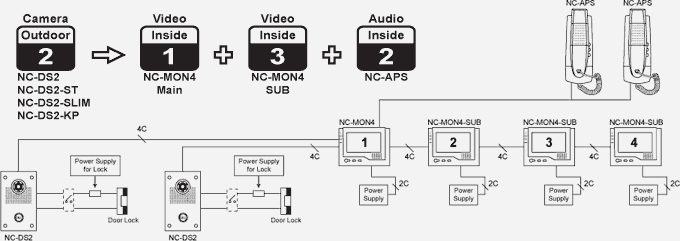

 intercom_set_up_diagram

7” Color Monitor Inside Station & Sub Station

Power Supply for Intercom Main & Sub Station
Product Code:NC-MON4
NC-MON4-SUB
Features:

•7” Screen
•2 min. Talking Time
•Dual Transmission Mode
•Surface Mounting
•12V~14.5V DC, 800mA, 50/60Hz (NC-MON4)
•12V~14.5V DC, 700mA, 50/60Hz (NC-MON4-SUB)
•Stand by 50mA
•9.45” x 6.89” x 1.5” / 240mm x 175mm x 38mm
*Must be used with AC-POWERDC 14.5V DC power supply for each monitor
**Power supply sold separately

Learn more »

 NC-MON4-SUB Product Code: AC-POWERDC

Features:

•Output Voltage: 14.5V DC
•Output Current: 1.3A max
•Output Power: <18W
•Input: 90~264V AC, 50/60Hz
*16 Gauge Power Cord Sold Separately

User Manual

 AC-POWERDC

Outdoor Intercom

Outdoor Intercom
Product Code: NC-DS2

Features:

•1/3” CCD; 420 TVL; 0.05 Lux
•120 sec Communication Duration
•Duplex Communication Type
•Recessed Mounting
•IP55 Rating; 12V~14.5V DC, 200mA
•5.91” x 9.06” x 1.69” / 175mm x 230mm x 43mm
*Mix and Match - Maximum 2 Outdoor Stations

Lean more »

 NC-DS2 Product Code: NC-DS2-ST

Features:

•1/3” CCD; 420 TVL; 0.05 Lux
•3.6mm Lens
•Hands-free Talking
•120 sec Communication Duration
•Duplex Communication Type
•Surface Mounting
•IP55 Rating; 12V~14.5V DC, 100mA
•3.54” x 5.12” x 1.69” / 90mm x 130mm x 43mm
*Mix and Match - Maximum 2 Outdoor Stations

Lean more »

 NC-DS2-ST

Outdoor Intercom

Outdoor Intercom
Product Code: NC-DS2-SLIM

Features:

•1/3” CCD; 420 TVL; 0.05 Lux
•120 sec Communication Duration
•Duplex Communication Type
•Surface Mounting
•IP55 Rating; 12V~14.5V DC, 200mA
•2.17” x 5.12” x 1.54” / 55mm x 130mm x 39mm
*Mix and Match - Maximum 2 Outdoor Stations

Lean more »

 NC-DS2-Slim Product Code: NC-DS2-KP

Features:

•1/3” CCD; 420 TVL; 0.05 Lux
•3.6mm Lens
•Hands-free Talking
•120 sec Communication Duration
•Duplex Communication Type
•Surface Mounting
•IP55 Rating; 12V~14.5V DC, 100mA
•2.17” x 5.12” x 1.54” / 55mm x 130mm x 39mm
*Mix and Match - Maximum 2 Outdoor Stations

Lean more »

 NC-DS2-ST

Outdoor Intercom
Product Code: NC-APS

Features:

•Surface Mounting
•12V~14.5V DC
•3.0” x 9.06” x 2.31”
•76mm x 230mm x 58mm
*Maximum 2 Audio Sets

Lean more »

 NC-DS2-Slim
