Tube Box Cameras - Analog CCTV

*PIC = Product Item Code.

DNR Super Low Lux OSD IR ICR Vandal Camera

Indoor External IR

PIC: T-417 700 TV Line Replacing T-416

PIC: T-416-IR Designed to be used with T-416

700 TV Lines
1/3” Sony Exview CCD II
Digital Noise Reduction (DNR)
0.00039 (Sens-up, 256X) /
0.1 Lux (50 IRE @ F1.4)
Built-in Microphone RCA Output
RS485 Output for OSD Control
Dual Power 12V DC / 24V AC
*Lens not included

Learn more »

Total 14pcs IR LED: 4pcs Reflection & 10pcs 5Ø
Parabolic reflected IR LEDs allow for even illumination of a shot on near and far objects
Built-in Photodiode: Cadmium Sulfide (CdS) cells within the External IR controls the Mechanical IR Cut Filter (ICR) that’s in the SDNR-8700 camera, allowing it to detect light. So when the CdS cells detect low light, the External IR is triggered and activates the camera’s ICR to work simultaneously for best day and night images
External IR can be mounted above or below the camera and can be aimed high or low in the field of vision
IR distance up to 100ft / 30m
Can be used in different distance ranges and adjusts the IR high/low
Light sensor trigger is adjustable for a range of lighting conditions
Start delay can be set at different times
12V DC

User Manual »


T-415-IR Example

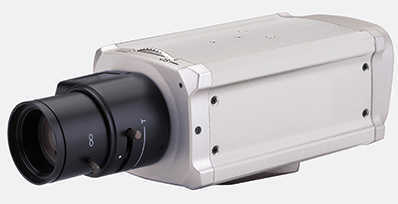

DNR Super Low Lux Day & Night OSD Box Camera


PIC: T-416 630 TV Line discontinued

1/3” Sony Super HAD CCD II
630 TV Lines
Digital Noise Reduction (DNR)
0.00039 (Sens-up, 256X) / 0.1 Lux (50 IRE @ F1.4)
Mechanical IR Cut Filter (ICR)
Built-in Microphone RCA Output
On-Screen Display (OSD)
RS485 Output for OSD Control
Alarm Output: Black/Brown
Dual Power 12V DC / 24V AC
Optional Exernal IR T-416-IR

Learn more »
