IR Cameras - Analog CCTV

*PIC = Product Item Code. Discontinued Cameras »

IR Outdoor Color Camera w/ Mechanical IR Cut

IR Outdoor Color Camera
PIC: I-337 650 TV Line

Features:
PIC: I-301 520 TV Line

Features:
•1/3" Ex-View CCD
•650 TV Lines
•42 IR LED
•3.7mm~12.0mm Aspherical Auto Iris Vari-Focal Lens
•Mechanical IR Cut Filter – ICR
•IR Distance up to 120ft / 40m
•Selectable IR projecting distance design (Hi/Mid/Low)
•0.3 Lux @ F1.6
•External Function Adjustors
•Cable Management Bracket; IP66 Rating
•IR "on": 320mA (Low) / 420mA (Mid) / 750mA (High)
•IR "off": 130mA
•12V DC

Learn more »

 I-337
•1/3” Hi-Res. Sony Super HAD CCD
•520 TVL
•42 IR LED
•3.3mm~12.0mm Aspherical Vari-Focal Lens
•F1.5 with IR Coding – Made by DAIWON
•IR Distance up to 130ft / 40m
•Selectable IR projecting distance design (Hi/Mid/Low)
•0.3 Lux @ F1.6 / 0 Lux @ IR “on”
•External Function Adjustors
•Cable Management Bracket
•Internal wire system with anti-cut bracket
•IP66 Rating
•12V DC

Learn more »

 I-301

IR Outdoor Dome Camera

IR Outdoor Bullet Camera
Product Code: EIVD28-870VF2W White casing
EIVD28-870VF2B Black casing
PIC: I-373 / I-374

Features:
Product Code: EIR35-870VF2 700 TV Line
PIC: I-372


Features:
•1/3” Sony Super HAD CCD II
•Sony Effio-E DSP
•700 TV Lines
• 2.8mm~12mm Varifocal Lens
•28 IR LED; IR distance 60ft / 20m
•Various Angle LED Combination - Uniform IR light distribution for optimum viewing angle
•2DNR
•Photodiode Design for accurate IR LED trigger activation
•Double Glass: Effectively reducing the internal reflection
•Aluminum alloy housing design for better heat dissipation
•12V DC / 110mA @ IR OFF ; 290mA @ IR ON
•IP66 Rating

Learn more »

 I-373 / I-374
•1/3” Hi-Res. Sony Super HAD CCD
•700 TVL
•35 IR LED
•2.8mm~12mm Vari-Focal Lens
•IR Distance up to 80ft / 25m
•Various Angle LED Combination – Uniform IR light distribution for optimum viewing angle
•2DNR
•Photodiode Design for accurate IR LED trigger activation
•Double Glass: Effectively reducing the internal reflection
•Aluminum alloy housing design for better heat dissipation
•IP66 Rating
•12V DC / 110mA @ IR OFF ; 340mA @ IR ON

Learn more »

 I-350

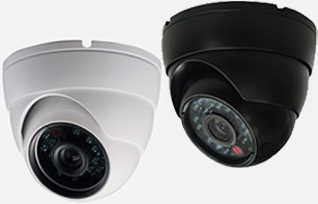

IR Outdoor Dome Camera

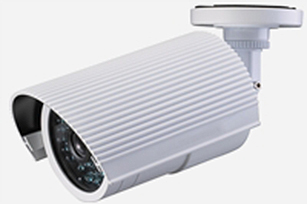

IR Outdoor Bullet Camera
Product Code: EIVD18-87036 White casing
EIVD18-87036B Black casing
EIVD18-87060 White casing
EIVD18-87060B Black casing
PIC: I-351 / I-356 / I352 / I-357

Features:
Product Code: EIR42-87036 3.6mm Lens
EIR42-87060 6.0mm Lens
PIC: I-348 / I-349



Features:
•1/3” Sony Super HAD CCD II
•Sony Effio-E DSP
•700 TV Lines
•EIVD18-87036/ EIVD18-87036B: 3.6mm Lens
•EIVD18-87060/ EIVD18-87060B: 6.0mm Lens
•18 IR LED; IR distance 50ft / 15m
•Various Angle LED Combination - Uniform IR light distribution for optimum viewing angle
•2DNR
•Photodiode Design for accurate IR LED trigger activation
•Double Glass: Effectively reducing the internal reflection
•Aluminum design for better heat dissipation
•12V DC
•IP66 Rating
•EIVD18-87036/ EIVD18-87060: White Casing
•EIVD18-87036B/ EIVD18-87060B: Black Casing

Learn more »

 I-351 / I-356 / I352 / I-357
•1/3” Sony Super HAD CCD II
•Sony Effio-E DSP
•700 TV Lines
•EIR42-87036: 3.6mm Lens
•EIR42-87060: 6.0mm Lens
•42 IR LED; IR distance 100ft / 30m
•Various Angle LED Combination - Uniform IR light distribution for optimum viewing angle
•2DNR
•Photodiode Design for accurate IR LED trigger activation
•Double Glass: Effectively reducing the internal reflection
•Aluminum design for better heat dissipation
•12V DC / 110mA @ IR OFF ; 340mA @ IR ON
•IP66 Rating

Learn more »

 I-348 / I-349
