Full D1 Realtime H.264 DVR - 4 CH.                discontinued MADE IN TAIWAN
CCTV Security
Product Code: DDR-04 4 CH DV-4
For PAL system info, please view specifications

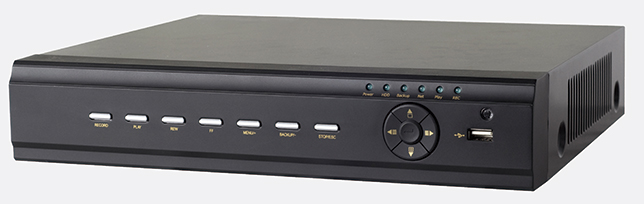

Product Picture

Download  Data Sheet   |   User Manual   |   Quick Setup Guide
 Update DVR firmware   |   Instruction for Port Forwarding   |   CMS Software Download

Features:
  • 4 / 8 / 16 CH Full D1 record and playback
  • 4 CH Audio record
  • Spot monitor output
  • HDMI supported
  • H.264 standard compression algorithm, low bit rate, high picture quality
  • Dual stream - individual network video streaming and DVR record streaming
  • Smart phone remote view
  • Support Browsers: IE, Firefox, Chrome, Safari
  • 2 way audio
  • HDD data retention days / Daylight saving time / Network Time Protocol
  • Alarm trigger / relay out / motion function enable schedule
  • Watermark supported
  • Alarm triggering screen popup, buzzer, related record, PTZ preset, pre-alarm, e-mail
  • Operation log list / Network online users list check
  • Intensive security function by chosen AUTHORITY
  • Convenient backup by AVI file
  • DVR control: OSD keyboard, remote controller, mouse, control keyboard, network
  • CMS software support up to 256 channels
  • EMAP through CMS software
Model DDR-04 DDR-08-1U DDR-16-1U
Video System NTSC/PAL
Input 4 / 8 / 16CH input 1.0Vp-p, 75ohm unbalanced (CVBS)
Output Input Main x1, Spot x1
VGA 1 (Max : 1280 x 1024)
HDMI 1 (1920 x 1080)
Color 16.7 million
Display Channel 1/ 4 1/ 4 / 9 1/ 4 / 9 / 16
Spot Monitor BNC
Display Resolution NTSC:720(H) x 480(V) ; PAL :720(H) x 576(V)
Display Rate 120 fps (NTSC) / 100 fps (PAL) 240 fps (NTSC) / 200 fps (PAL) 480 fps (NTSC) / 400 fps (PAL)
Recording Resolution NTSC: 720 x 480 (D1); PAL: 704 x 576 (D1)
NTSC: 720 x 240 (2CIF); PAL: 704 x 288 (2CIF)
NTSC: 360 x 240 (CIF); PAL: 352 x 288 (CIF)
Recording Rate NTSC: D1/2CIF/CIF 120 fps;
PAL: D1/2CIF/CIF 100 fps
NTSC: D1/2CIF/CIF 240 fps;
PAL: D1/2CIF/CIF 200 fps
NTSC: D1/2CIF/CIF 480 fps;
PAL: D1/2CIF/CIF 400 fps
Record Quality Highest / Higher / Medium / Lower / Lowest
Compression Method H.264
Recording Mode Auto / manual / schedule / motion / alarm
Playback Mode Date & Time search / Event search
Multi-task Live / Record / Play / Network / Backup
Motion Detect 22 x 15 grids camera for all channel
Alarm Function 4 Input / 1 Output 8 Input / 1 Output 16 Input / 1 Output
Backup USB 2.0 / Network remote backup /DVD-RW (optional)
Storage SATA x 1 SATA x 2 (3TB each) SATA x 3 (3TB each)
Audio Input RCA x 4
Audio Output RCA x 1
HDD Record Mode Full stop / overwrite
PTZ Control PELCO-P, PELCO-D, SAMSUNG
Mobile Surveillance Yes
IR Remote controller Standard
Mouse USB
Ethernet 10/100/1000 M Base-T
Network-Function Support licensed CMS (256CH) / EMAP/ IE / Firefox / Chrome / Safari
Network Connection TCP/IP, PPPoE, DHCP, DDNS
Client Application Display / Playback / Backup / DVR control / PTZ Control
Power Source DC 12V / 2Amp DC 12V / 4Amp DC 12V / 5Amp
Operating Temperature 5°C ~ 40°C (41°F ~ 104°F)
Operating Humidity Less than 90%
Dimension 11.8(W) x 2.24(H) x 10.6(D) Inch
300(W) x 57(H) x 270(D) mm
16.9(W) x 2.16(H) x 15.1(D) Inch
430(W) x 55(H) x 384(D) mm
16.9(W) x 2.16(H) x 15.1(D) Inch
430(W) x 55(H) x 384(D) mm
*Specifications are subject to change without notice.

FCC Certified CE Certified
MADE IN TAIWAN

  • One (1) DDR-04 DVR
  • One (1) Remote Controller
  • Two (2) AAA Battery for Remote Controller
  • One (1) USB Mouse
  • Two (2) 4 Screw on Terminal Connector
  • Four (4) Hard Drive Screws
  • One (1) 12V DC / 2Amp Power Adapter
  • One (1) SATA Cable Inside DVR
  • One (1) Quick Set up Guide Book
  • One (1) CMS Software & Manual CD
*Manufacturer's Limited One (1) Year Warranty
